MINI, MIDI, MAXI Carbide Black Ins
- Carefully selected combination of inserts designed to deliver flexibility together with a wide range of applications from one tool
- BlackLine Carbide Black inserts suits the majority of wood and composite materials turning applications from roughing to fine finishing to high quality surface finish, from simple to intricate shapes
- 3.2mm thick
- MINI M3 mm [0.12”], MIDI M4 mm [0.16”], MAXI M5 mm [0.2”] center location hole
- 7 degree bevel with 20 degree bevel option
-
Precision ground and polished cutting edges
- W – 3 x large radius and 3 x corner point cutting edges
- V – 1 x 3mm radius corner, 1 x 0.8mm radius corner, 4 x straight cutting edges
- S – 4 x straight edges, 4 x corners with either round corner or 90 degree corner
- R – 360 degree cutting edges
- Bevel angle designed for high performance material removal and surface finish
- Carbide Black custom designed for turning wood and composite materials. Long life sub-micron carbide material designed for longer life, uninterrupted turning

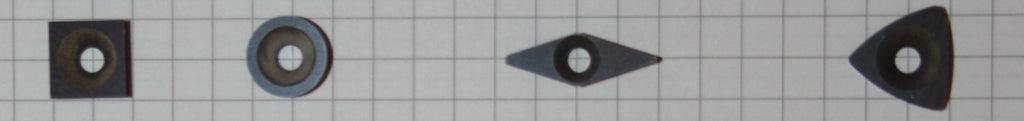

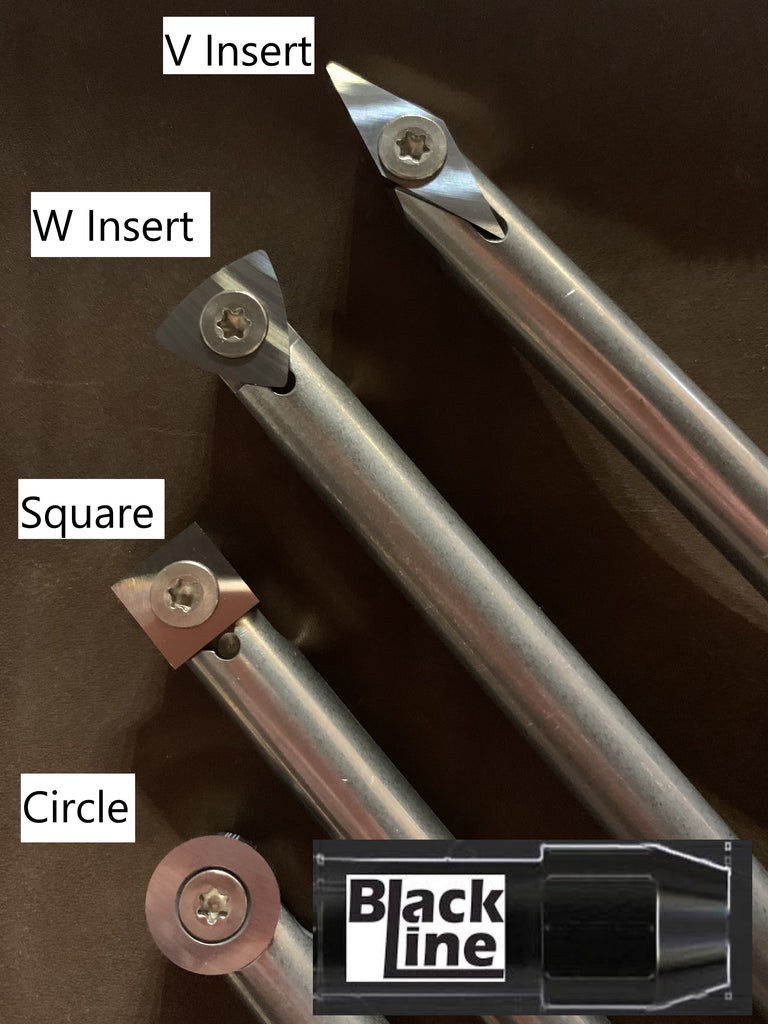

MAXI MIDI MINI Carbide Inserts (Cutters)
Square - Roughing
Round - Shaping
V - Detailing
W- Roughing ,Shaping Finishing
W and Round and Square Can be used in a shearing mode positioning the insert at an 45 deg angle
