BlackLine Tools

Blackline Negative Rake Carbide Blades for the Midi

$36.50
Availability: In-Stock
Vendor: Blackline Tools
Type: Carbide
SKU: Blackline Neg Rake Midi-1
MINI, MIDI, MAXI Carbide Black Ins Negative Rake: 7 deg bevel bottom and 20 deg chamfer on top - can be used for shearing Carefully selected combination of inserts designed to deliver flexibility together with a wide range of applications from one tool BlackLine Carbide Black inserts suits the majority...
Quantity

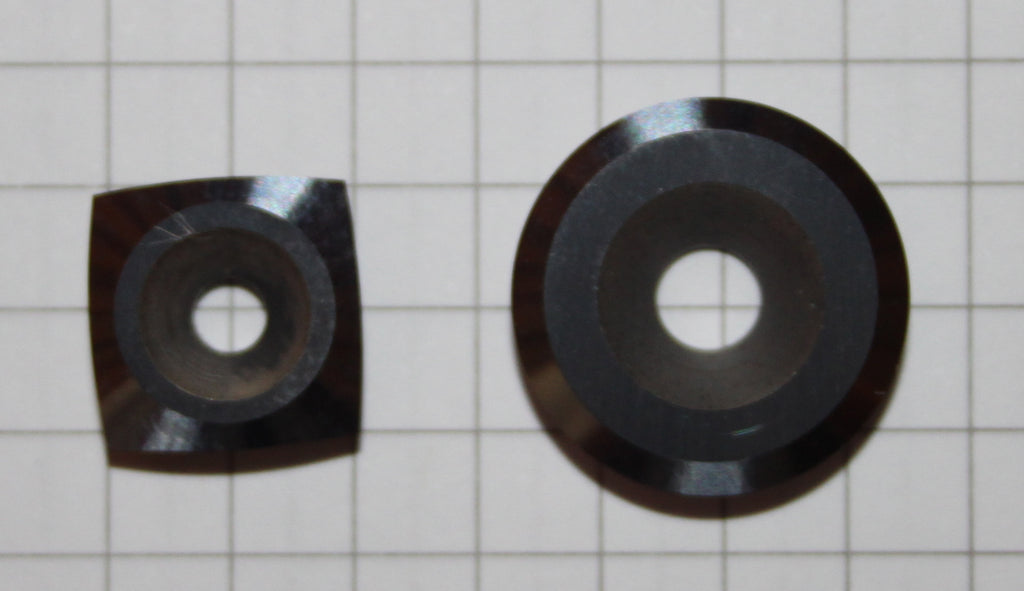

MINI, MIDI, MAXI Carbide Black Ins

  • Negative Rake: 7 deg bevel bottom and 20 deg chamfer on top - can be used for shearing
  • Carefully selected combination of inserts designed to deliver flexibility together with a wide range of applications from one tool
  • BlackLine Carbide Black inserts suits the majority of wood and composite materials turning applications from roughing to fine finishing to high quality surface finish, from simple to intricate shapes
  • 3.2mm thick
  • MINI M3 mm [0.12”], MIDI M4 mm [0.16”], MAXI M5 mm [0.2”] center location hole
  • 7 degree bevel with 20 degree bevel option
  • Precision ground and polished cutting edges
    • W – 3 x large radius and 3 x corner point cutting edges
    • V – 1 x 3mm radius corner, 1 x 0.8mm radius corner, 4 x straight cutting edges
    • S – 4 x straight edges, 4 x corners with either round corner or 90 degree corner
    • R – 360 degree cutting edges
  • Bevel angle designed for high performance material removal and surface finish
  • Carbide Black custom designed for turning wood and composite materials.  Long life sub-micron carbide material designed for longer life, uninterrupted turning

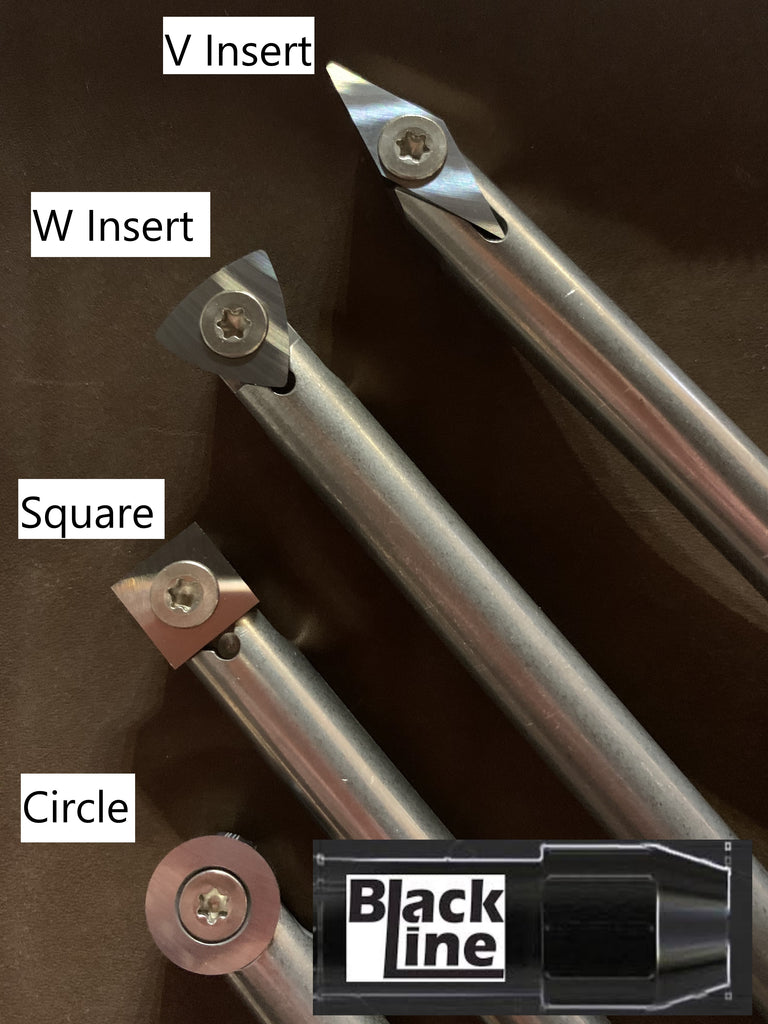

MAXI MIDI MINI Carbide Inserts (Cutters)

Square - Roughing

Round - Shaping

V - Detailing

W- Roughing ,Shaping Finishing

W and Round and Square Can be used in a shearing mode positioning the insert at an 45 deg angle
